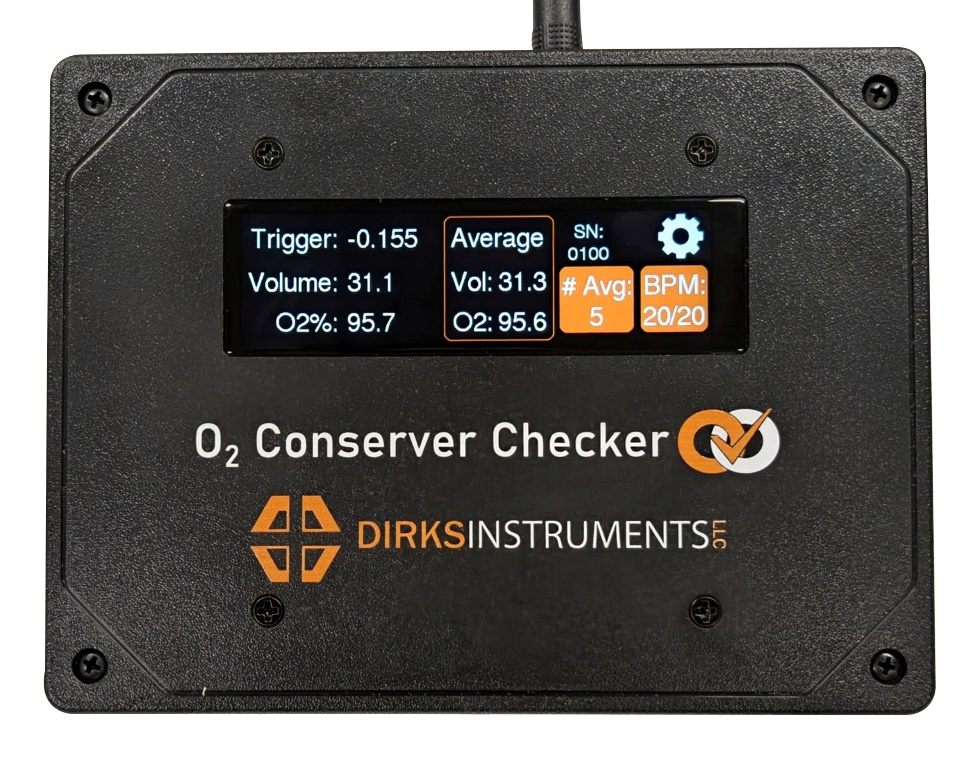

O2 Checker

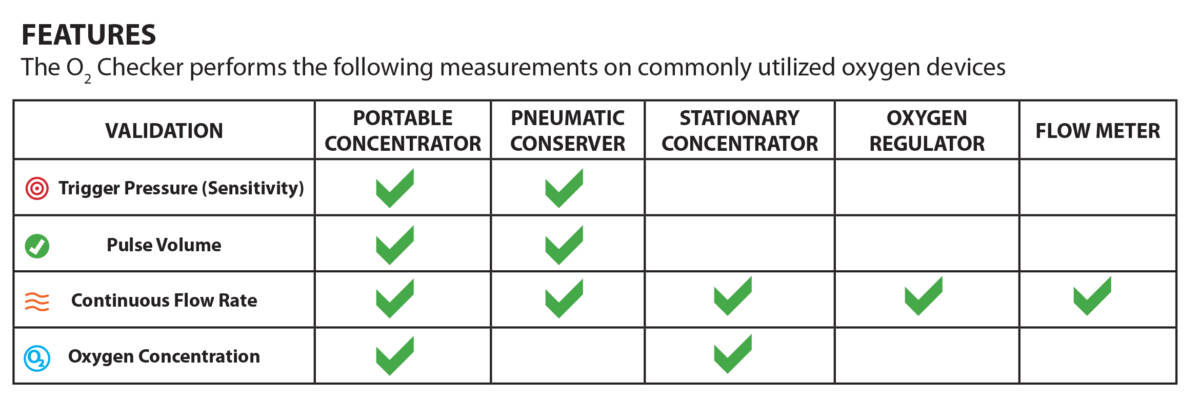

- For use in the validation of portable oxygen concentrators, pneumatic oxygen conserving devices, stationary concentrator and oxygen regulators up to 15 LPM flow rates
- Verifies the oxygen flow rate of basic continuous flow systems such as stationary concentrators or standard flow meters
- Designed to test key performance functions of supplemental oxygen systems by providing a simulated breath (adjustable 10-40 LPM) and measuring the pressure required to trigger a pulse, then measuring the amount of oxygen delivered in the pulse

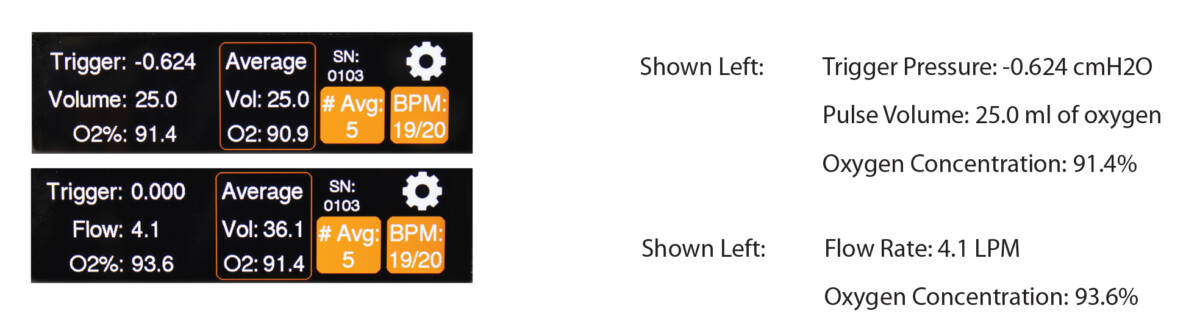

- New easy to use touchscreen interface with large LCD display
- User friendly, compact & lightweight
- Maintenance free. No field calibration required
- Optional connectivity to PC via Bluetooth. Add-on companion software (separate purchase required) allows for generation of test reports
- 2 year warranty
MSRP: $1890.00 /EA
Specs
Power: 5 volts DC at @ 300 ma
Operating Temperature: 15 °C to 37 °C (59°F to 99°F)
Dimensions & Weight: 7” x 4.5” x 2.5” (117mm x 115mm x 63mm), 1 lb (454 g)
Display: LCD
Measurement ranges
Trigger Pressure: -0.025 to -0.80 cmH2O (-2.45 Pa to -78.4 Pa)
Flow Accuracy: .4 to 15 LPM, +/- 5%
Volume: +/- 5% of measured value
Oxygen Concentration: 20% to 96%, +/- 1.5%, resolution 0.1% ultrasonic
Breath Rate: Adjustable 10 to 40 BPM
